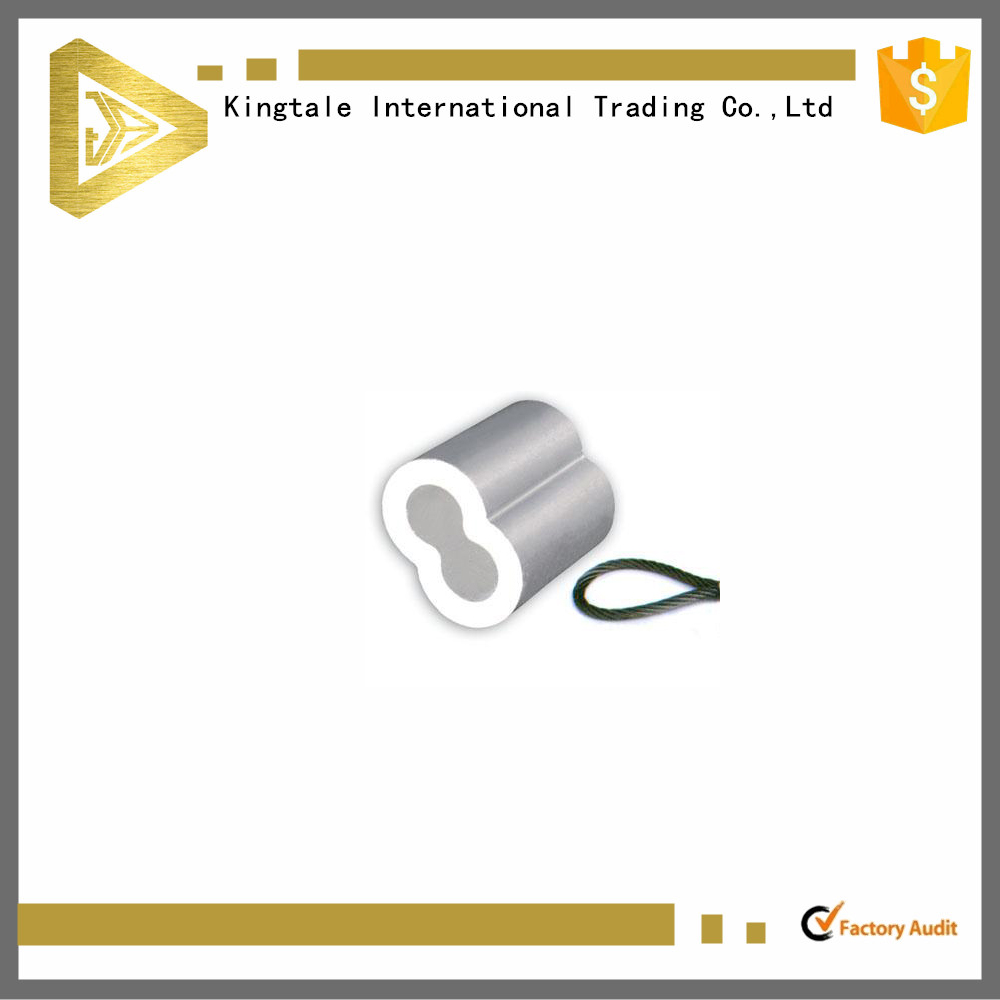

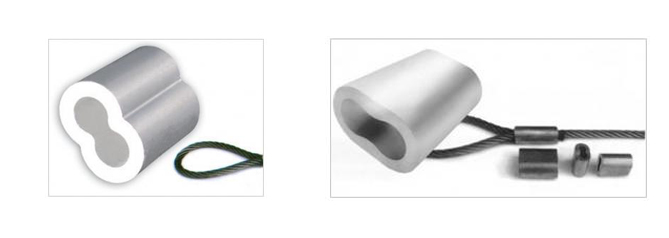

As férulas de corda de arame de alumínio duplex são férulas leves com a forma de ampulheta. São utilizadas para estabilizar ambas as extremidades da corda de arame de aço. É feita com materiais de elevada qualidade que estão de acordo com as certificações relevantes de segurança no processo de aplicação e manufactura.

Tamanho		A		B		C		D		L		Peso Kgs/1000Pcs
Inch	MM	Inch	MM	Inch	MM	Inch	MM	Inch	MM	Inch	MM
3/64	1.19	1/16	1.59	1/8	3.18	9/64	3.6	13/64	5.2	3/8	9.5	0.276
1/16	1.58	5/64	1.98	5/32	3.97	11/64	4.4	1/4	6.4	3/8	9.5	0.433
5/64	1.98	3/32	2.38	3/16	4.76	13/64	5.2	5/16	7.9	3/8	9.5	0.645
3/32	2.38	1/8	3.18	1/4	6.35	9/32	7.1	13/32	10.3	1/2	12.7	1.45
1/8	3.18	5/32	3.97	5/16	7.94	11/32	8.7	1/2	12.7	5/8	16	2.70
5/32	3.97	3/16	4.76	3/8	9.53	3/8	9.53	9/16	14.3	11/16	17	3.67
3/16	4.76	7/32	5.56	7/16	11.11	7/16	11.11	21/32	16.7	1	25	7.18
7/32	5.56	1/4	6.35	1/2	12.70	1/2	12.7	3/4	19	1-1/16	26	10.00
1/4	6.35	9/32	7.14	9/16	14.29	17/32	13.5	13/16	20.6	1-1/8	28	11.76
9/32	7.14	5/16	7.94	5/8	15.88	9/16	14.3	7/8	22.2	1-3/16	30	13.62
5/16	7.94	3/8	9.53	23/32	19.05	11/16	17.5	1-1/32	26.2	1-1/4	32	20.94
3/8	9.53	7/16	11.11	27/32	22.23	3/4	19.1	1-5/32	29.4	1-7/16	36	28.18
7/16	11.11	1/2	12.7	1	25.40	15/16	23.8	1-7/16	36.5	1-11/16	42	52.00
1/2	12.7	9/16	14.29	1-1/8	28.58	1-1/16	27	1-5/8	41.3	2	50	80.15
9/16	14.29	5/8	15.88	1-1/4	31.75	1-1/8	28.6	1-3/4	44.5	2-1/8	54	99.88
5/8	15.88	11/16	17.46	1-3/8	34.93	1-1/4	31.8	1-15/16	49.2	2-1/2	64	139.78
